Micolink协议定义与解析

#pragma once

#include <stdint.h>
#include <stdbool.h>
#include <string.h>

#define MICOLINK_MSG_HEAD            0xEF
#define MICOLINK_MAX_PAYLOAD_LEN     64
#define MICOLINK_MAX_LEN             MICOLINK_MAX_PAYLOAD_LEN + 7

/*
    消息ID定义
*/
enum
{
    MICOLINK_MSG_ID_RANGE_SENSOR = 0x51,     // 测距传感器
};

/*

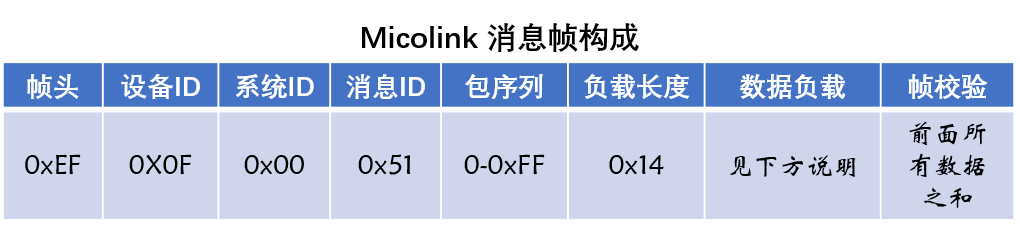

    消息结构体定义
*/
typedef struct
{
    uint8_t head;
    uint8_t dev_id;
    uint8_t sys_id;
    uint8_t msg_id;
    uint8_t seq;
    uint8_t len;
    uint8_t payload[MICOLINK_MAX_PAYLOAD_LEN];
    uint8_t checksum;

    uint8_t status;
    uint8_t payload_cnt;
} MICOLINK_MSG_t;

/*

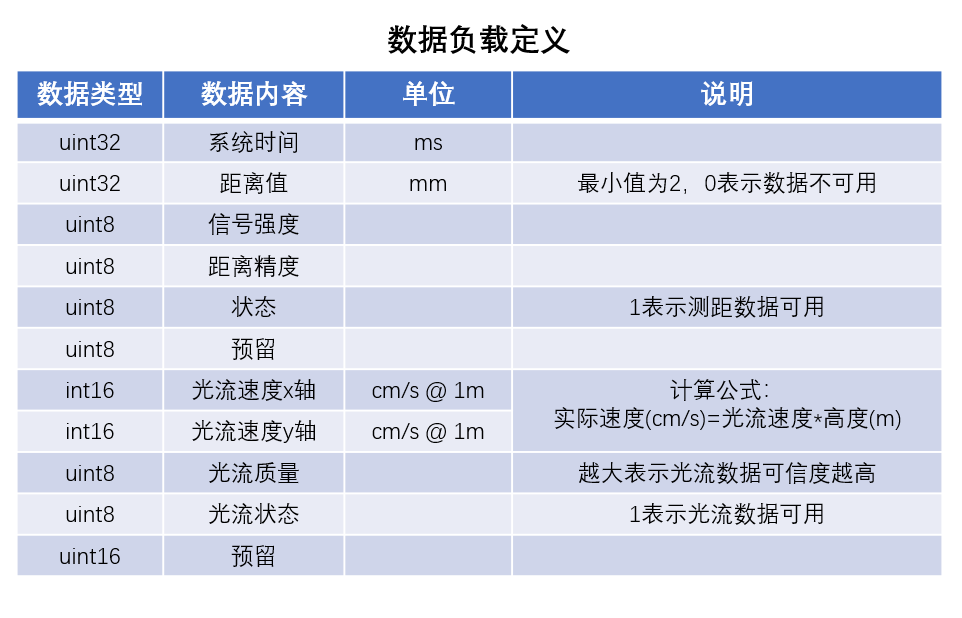

    数据负载定义
*/
#pragma pack (1)
// 测距传感器
typedef struct
{
    uint32_t  time_ms;			    // 系统时间 ms
    uint32_t  distance;			    // 距离(mm) 最小值为10，0表示数据不可用
    uint8_t   strength;	            // 信号强度
    uint8_t   precision;	        // 精度
    uint8_t   tof_status;	        // 状态
    uint8_t  reserved1;			    // 预留
    int16_t   flow_vel_x;	        // 光流速度x轴
    int16_t   flow_vel_y;	        // 光流速度y轴
    uint8_t   flow_quality;	        // 光流质量
    uint8_t   flow_status;	        // 光流状态
    uint16_t  reserved2;	        // 预留
} MICOLINK_PAYLOAD_RANGE_SENSOR_t;
#pragma pack ()

#include "mtf01.h"

/*
说明： 用户使用micolink_decode作为串口数据处理函数即可

距离有效值最小为10(mm),为0说明此时距离值不可用
光流速度值单位：cm/s@1m
飞控中只需要将光流速度值*高度，即可得到真实水平位移速度
计算公式：实际速度(cm/s)=光流速度*高度(m)
*/

bool micolink_parse_char(MICOLINK_MSG_t* msg, uint8_t data);

void micolink_decode(uint8_t data)
{
    static MICOLINK_MSG_t msg;

    if(micolink_parse_char(&msg, data) == false)
        return;

    switch(msg.msg_id)
    {
        case MICOLINK_MSG_ID_RANGE_SENSOR:
        {
            MICOLINK_PAYLOAD_RANGE_SENSOR_t payload;
            memcpy(&payload, msg.payload, msg.len);

            /*
                此处可获取传感器数据:

                距离        = payload.distance;
                强度        = payload.strength;
                精度        = payload.precision;
                距离状态    = payload.tof_status;
                光流速度x轴 = payload.flow_vel_x;
                光流速度y轴 = payload.flow_vel_y;
                光流质量    = payload.flow_quality;
                光流状态    = payload.flow_status;
            */
            break;
        }

        default:
            break;
        }
}

bool micolink_check_sum(MICOLINK_MSG_t* msg)
{
    uint8_t length = msg->len + 6;
    uint8_t temp[MICOLINK_MAX_LEN];
    uint8_t checksum = 0;

    memcpy(temp, msg, length);

    for(uint8_t i=0; i<length; i++)
    {
        checksum += temp[i];
    }

    if(checksum == msg->checksum)
        return true;
    else
        return false;
}

bool micolink_parse_char(MICOLINK_MSG_t* msg, uint8_t data)
{
    switch(msg->status)
    {
    case 0:     //帧头
        if(data == MICOLINK_MSG_HEAD)
        {
            msg->head = data;
            msg->status++;
        }
        break;

    case 1:     // 设备ID
        msg->dev_id = data;
        msg->status++;
        break;

    case 2:     // 系统ID
        msg->sys_id = data;
        msg->status++;
        break;

    case 3:     // 消息ID
        msg->msg_id = data;
        msg->status++;
        break;

    case 4:     // 包序列
        msg->seq = data;
        msg->status++;
        break;

    case 5:     // 负载长度
        msg->len = data;
        if(msg->len == 0)
            msg->status += 2;
        else if(msg->len > MICOLINK_MAX_PAYLOAD_LEN)
            msg->status = 0;
        else
            msg->status++;
        break;

    case 6:     // 数据负载接收
        msg->payload[msg->payload_cnt++] = data;
        if(msg->payload_cnt == msg->len)
        {
            msg->payload_cnt = 0;
            msg->status++;
        }
        break;

    case 7:     // 帧校验
        msg->checksum = data;
        msg->status = 0;
        if(micolink_check_sum(msg))
        {
            return true;
        }

    default:
        msg->status = 0;
        msg->payload_cnt = 0;
        break;
    }

    return false;
}
