飞控ID查询
Ardupilot飞控
-

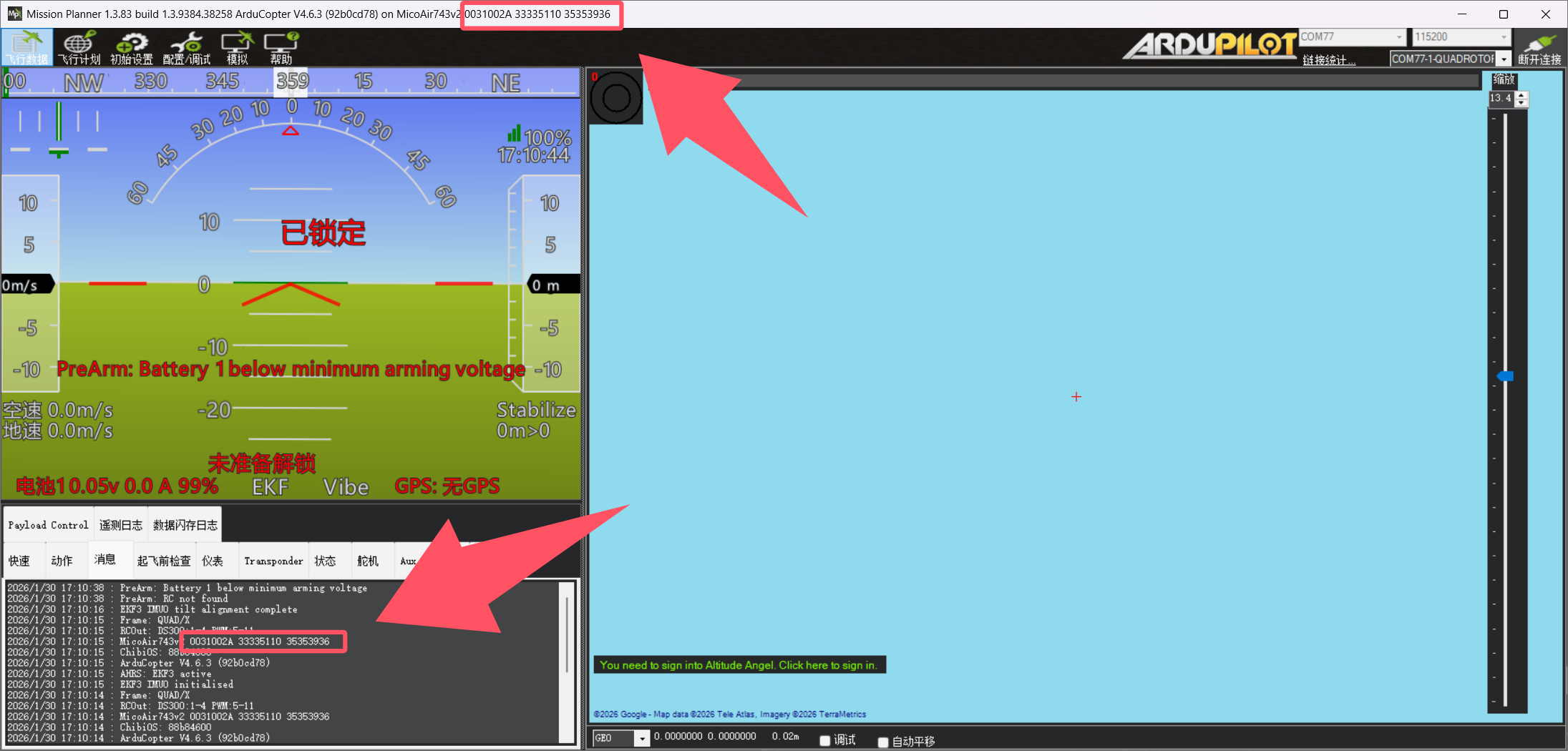

Ardupilot固件搭配MissionPlanner地面站使用，将飞控连接到地面站后，在MissionPlanner软件标题或者
飞行数据界面下消息栏 可以找到飞控ID -
如图飞控的ID为
0031002A 33335110 35353936
PX4飞控
-

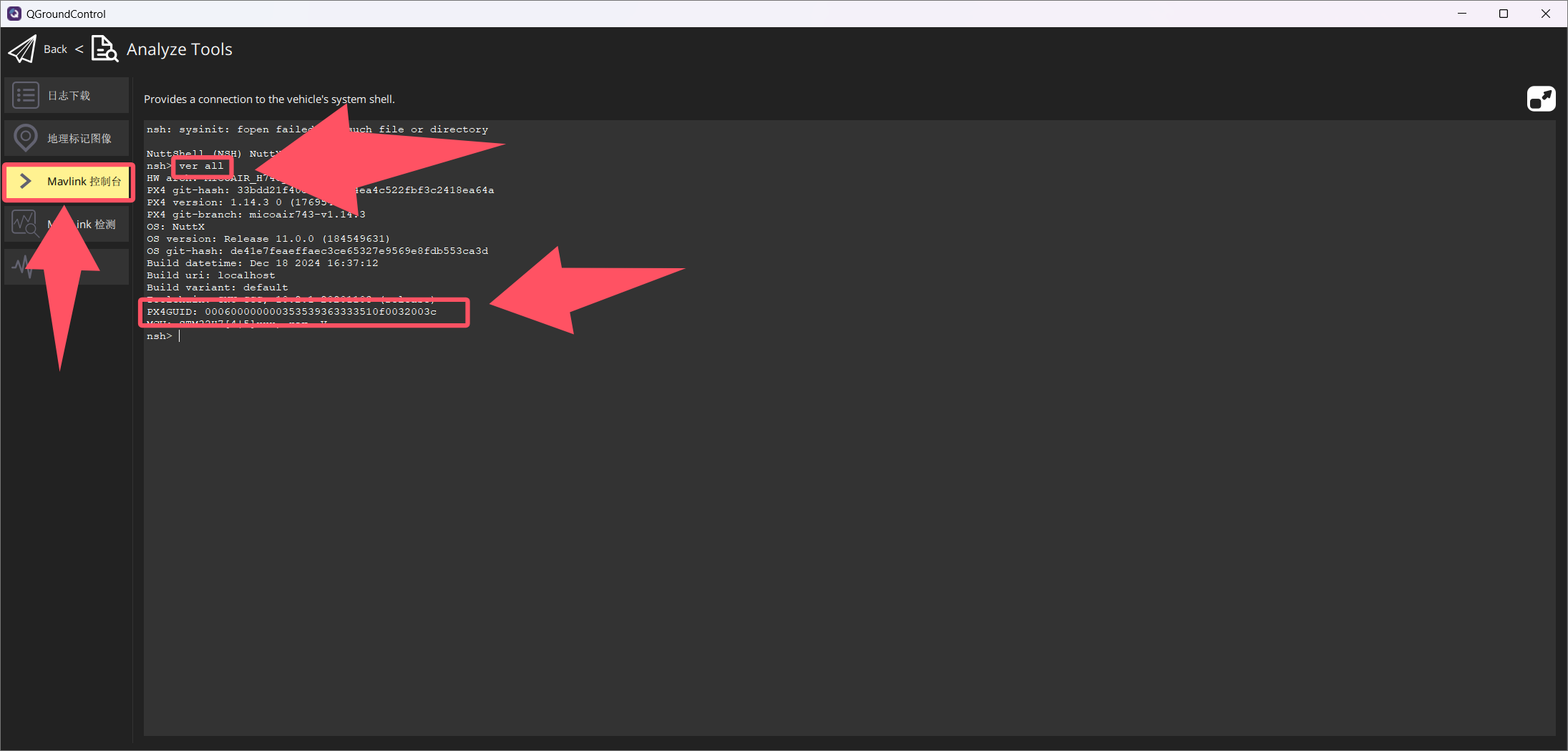

PX4-Autopilot固件搭配QGroundControl地面站使用，将飞控连接到地面站后，在QGroundControl的Analyze Tools界面下 Mavlink控制台 中输入
ver all指令，输出信息的PX4GUID即为飞控ID -
如图飞控的ID为
000600000000353539363333510f0032003c
INAV飞控
-

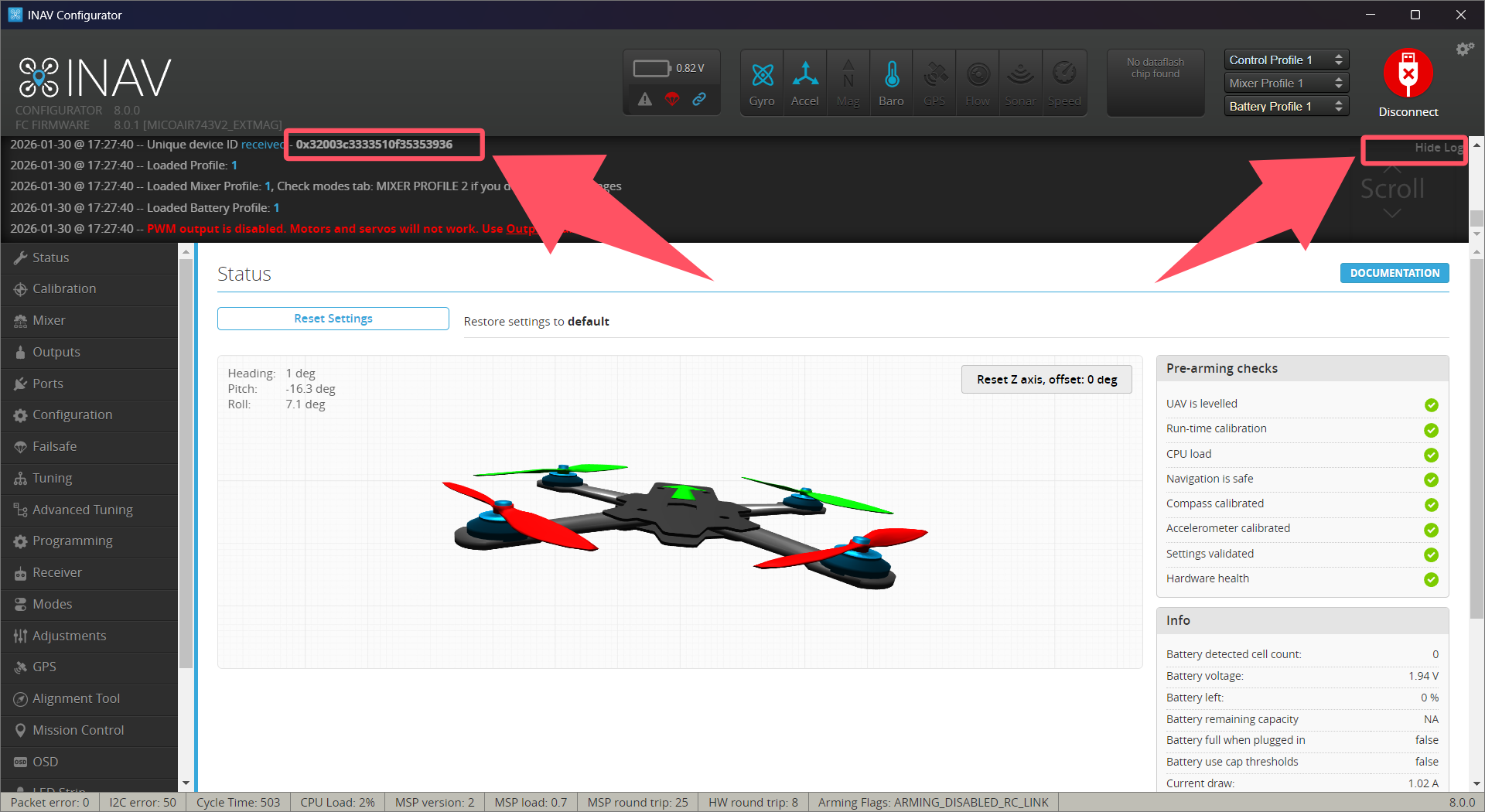

INAV固件搭配INAV Configurator地面站使用，将飞控连接到地面站后，点击 Disconnect 按钮下方
Show Log字符展开详细信息，在详细信息中找到Unique device ID即为飞控ID -
如图飞控的ID为
0x32003c3333510f35353936
Betaflight飞控
-

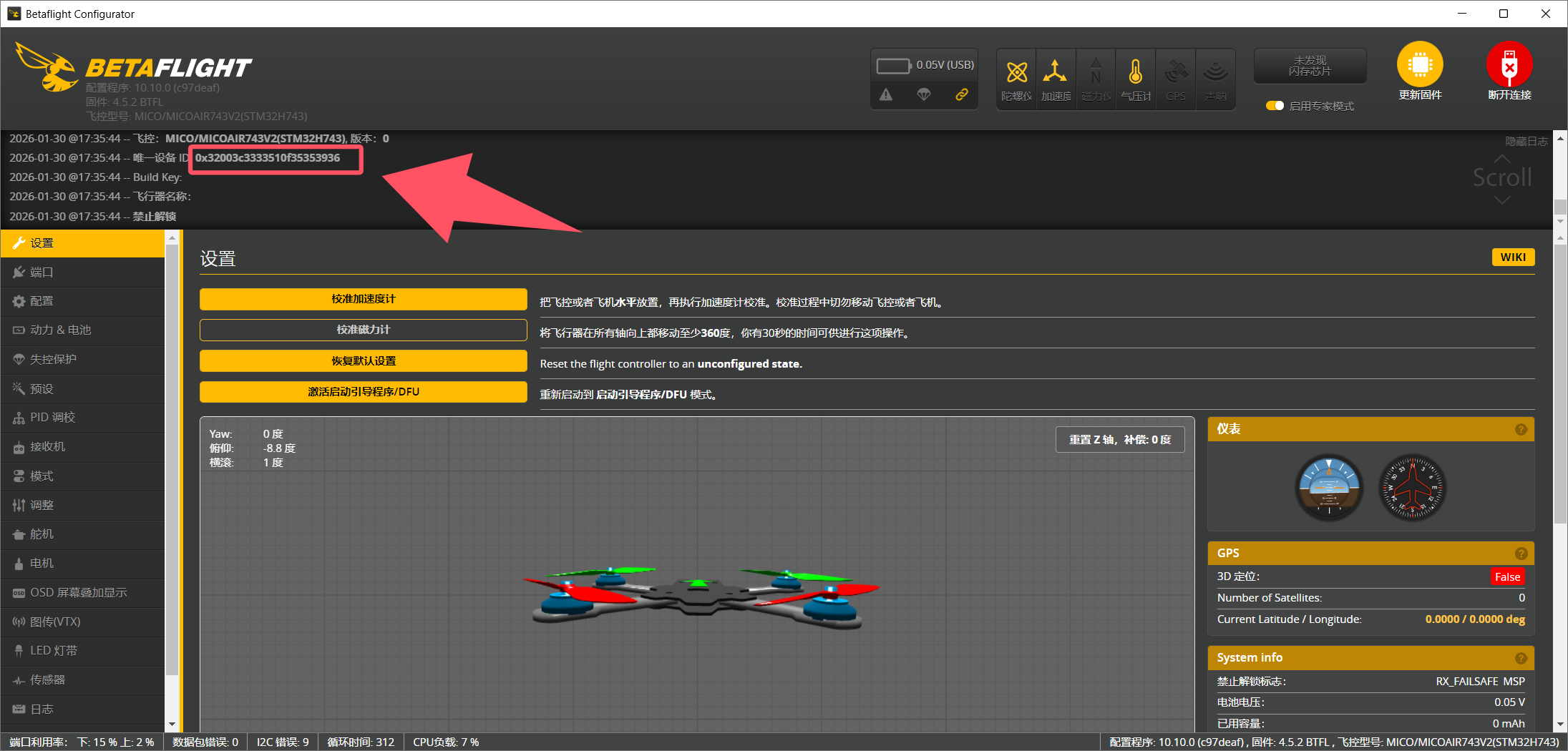

Betaflight固件4.5及之前版本固件搭配Betaflight Configurator地面站使用，将飞控连接到地面站后，在主界面输出日志可以找到
唯一设备ID即为飞控ID -
如图飞控的ID为
0x32003c3333510f35353936
-

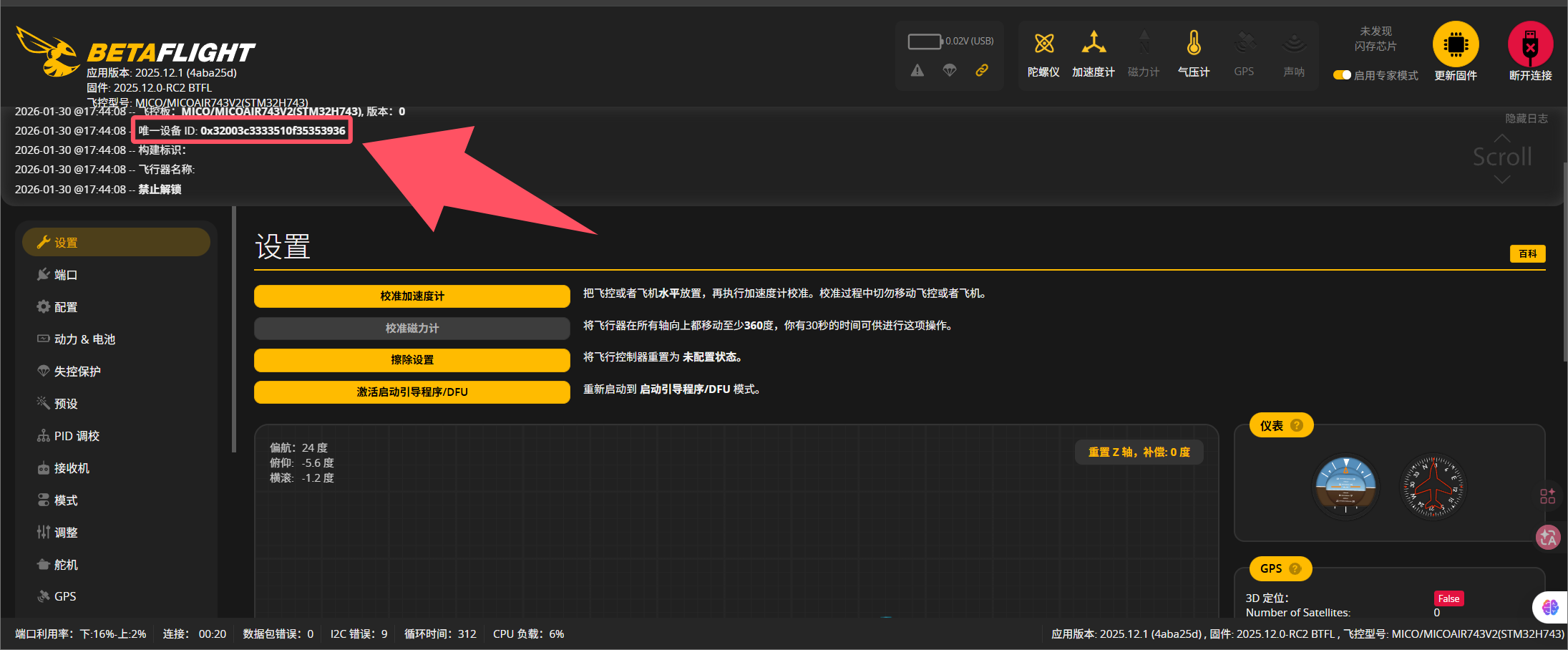

Betaflight固件2025.12及之后版本固件搭配网页配置工具
https://app.betaflight.com/使用（详细固件名称改版参考Betaflight官网），将飞控连接到网页配置器后，在主界面输出日志可以找到唯一设备ID即为飞控ID -
如图飞控的ID为
0x32003c3333510f35353936
