微空四合一蓝鸟电调用户手册

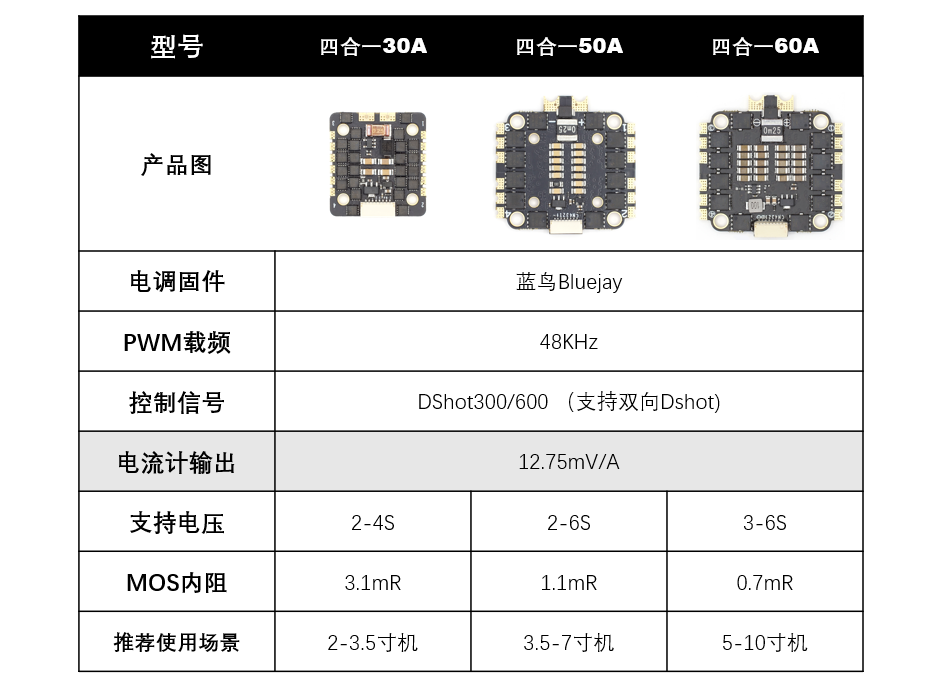

型号说明
产品购买
微空科技企业店
尺寸和接口线序定义
Curr：电流计输出接口
NC: 无需连接
M1-M4: 电机控制信号输入
VBAT：电池电压输出，比如电调接入6S电池，VBAT电压就是6S（22.2V）
GND：电源地

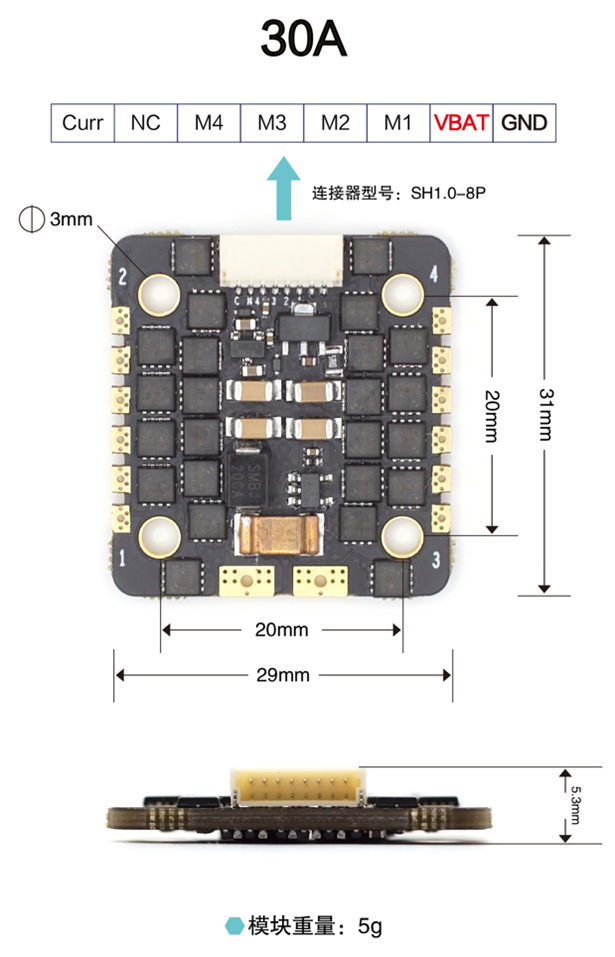

微空四合一30A

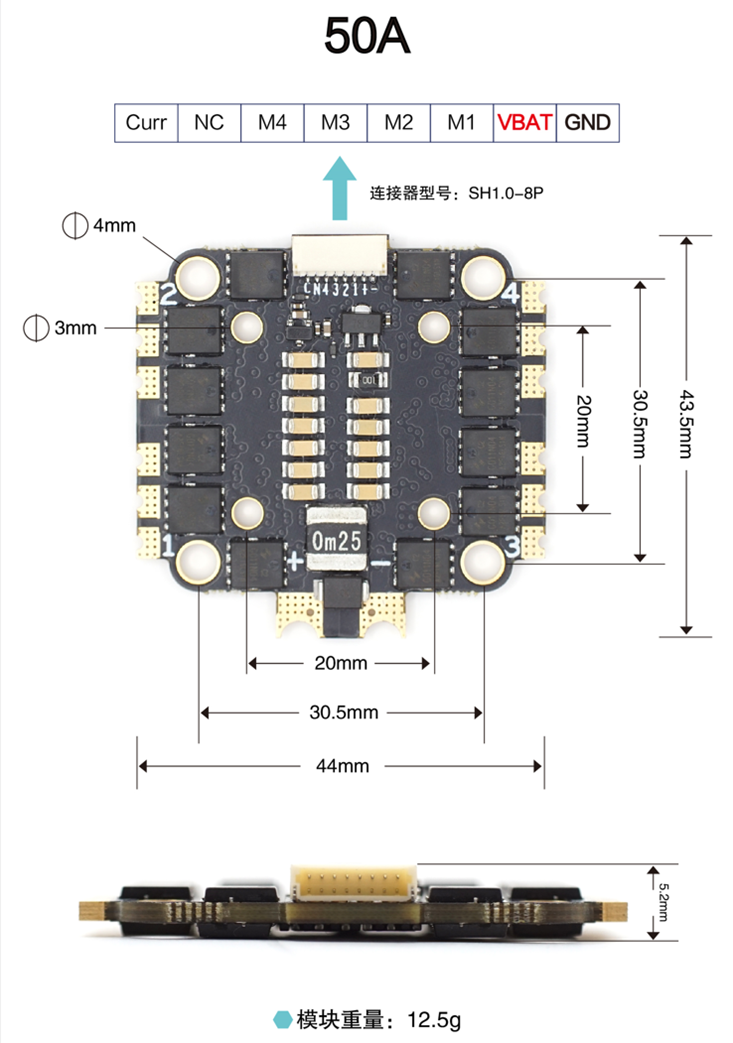

微空四合一50A

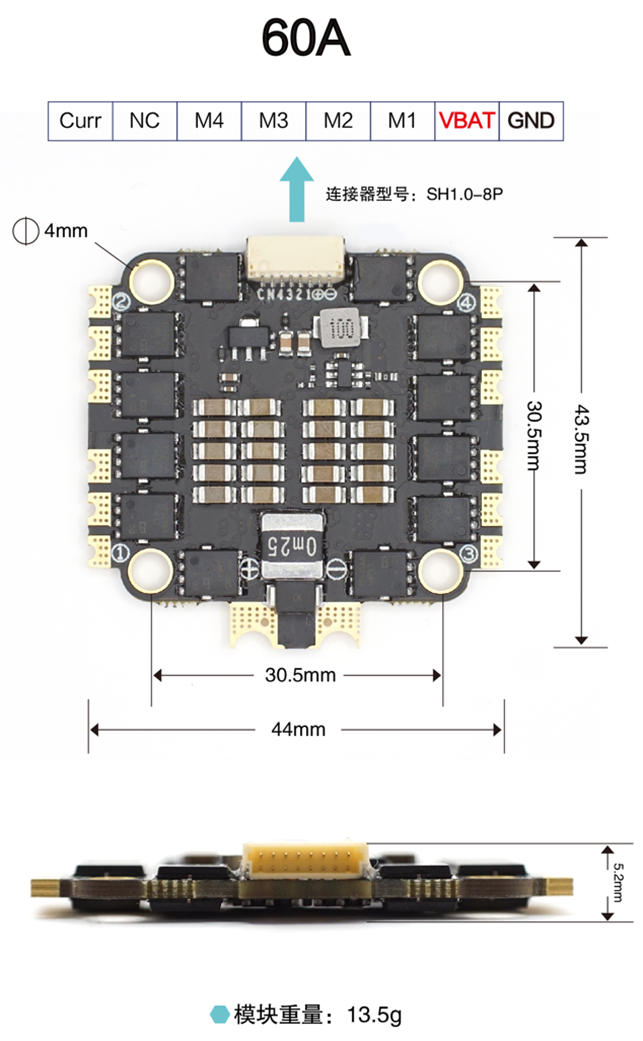

微空四合一60A

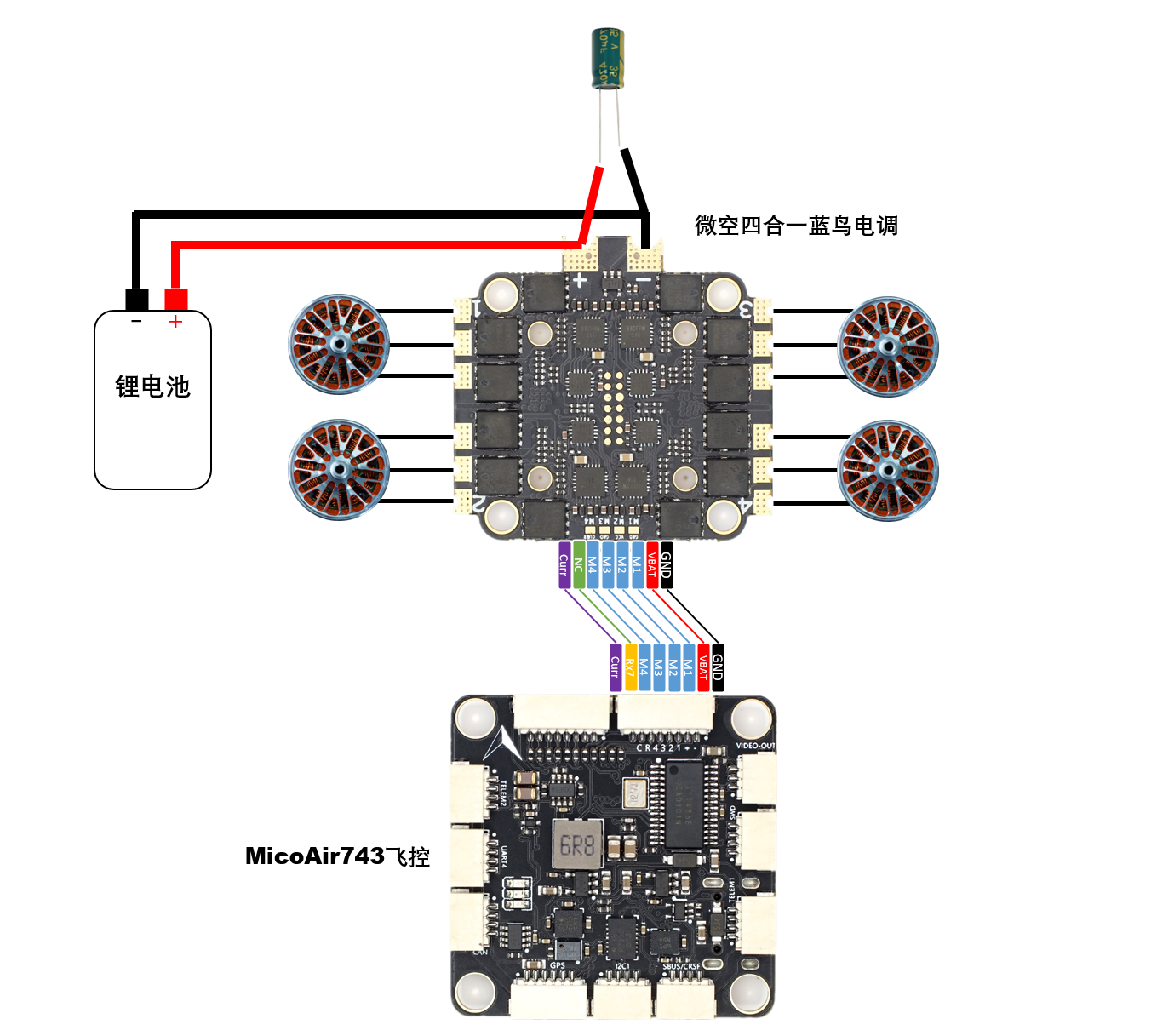

电调接线示意图
