微空GPS模组用户手册
型号说明
产品购买
产品参数
| 模组型号 | MG-A01 | M10G-5883 | MG-902 | MG-903 |
|---|---|---|---|---|
| 主控芯片 | ublox-m10050 | ublox-m10050 | ublox-m9140 | ublox-m9140 |
| 罗盘芯片 | QMC5883L | QMC5883L | QMC5883L | IST8310 |
| 卫星系统 | GPS L1 C/A; GLONASS L10F; BeiDou B1L/B1C; Galileo E1B/C; QZSS L1 C/A/S; SBAS L1 C/A | GPS L1 C/A; GLONASS L10F; BeiDou B1L/B1C; Galileo E1B/C; QZSS L1 C/A/S; SBAS L1 C/A | GPS L1 C/A; GLONASS L10F; BeiDou B1L; Galileo E1B/C; QZSS L1 C/A/S; SBAS L1 C/A | GPS L1 C/A; GLONASS L10F; BeiDou B1L; Galileo E1B/C; QZSS L1 C/A/S; SBAS L1 C/A |
| 星座并发 | 3 | 3 | 4 | 4 |
| 导航更新率 | 10Hz | 5Hz | 25Hz | 25Hz |
| 最大卫星数 | 32 | 32 | 32 | 32 |
| 追踪灵敏度 | -167dBm | -167dBm | -167dBm | -167dBm |
| Flash | 板载 | 板载 | 板载 | 板载 |
| 尺寸 | 25x25x8mm | 20x20x8mm | 25x25x8mm | 20x20x8mm |
| 重量 | 12g | 7g | 12g | 7g |
| 数据协议 | NMEA/UBX | NMEA/UBX | NMEA/UBX | NMEA/UBX |
芯片默认波特率：38400（MG-A01/M10G-5883)；9600（MG-902/MG-903)
模组出厂默认波特率：115200（MG-A01/M10G-5883/MG-902/MG-903)
模组出厂默认协议：UBX协议，NAV-PVT语句

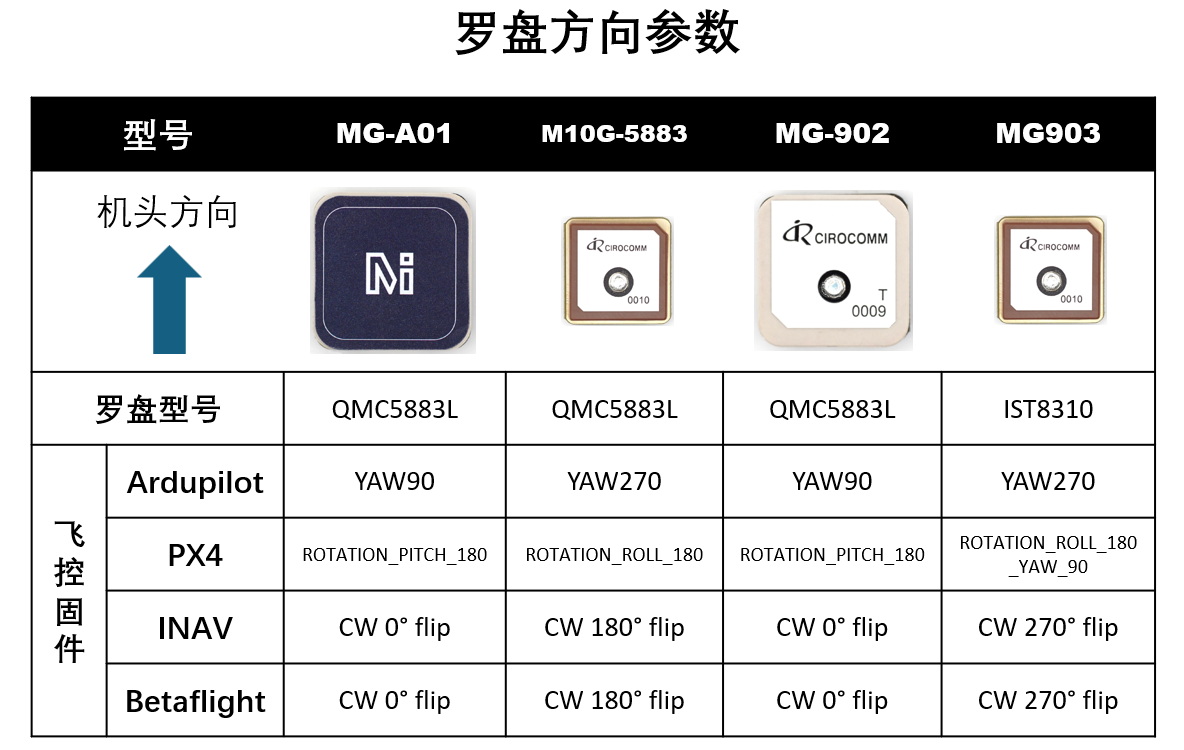

飞控罗盘参数设置

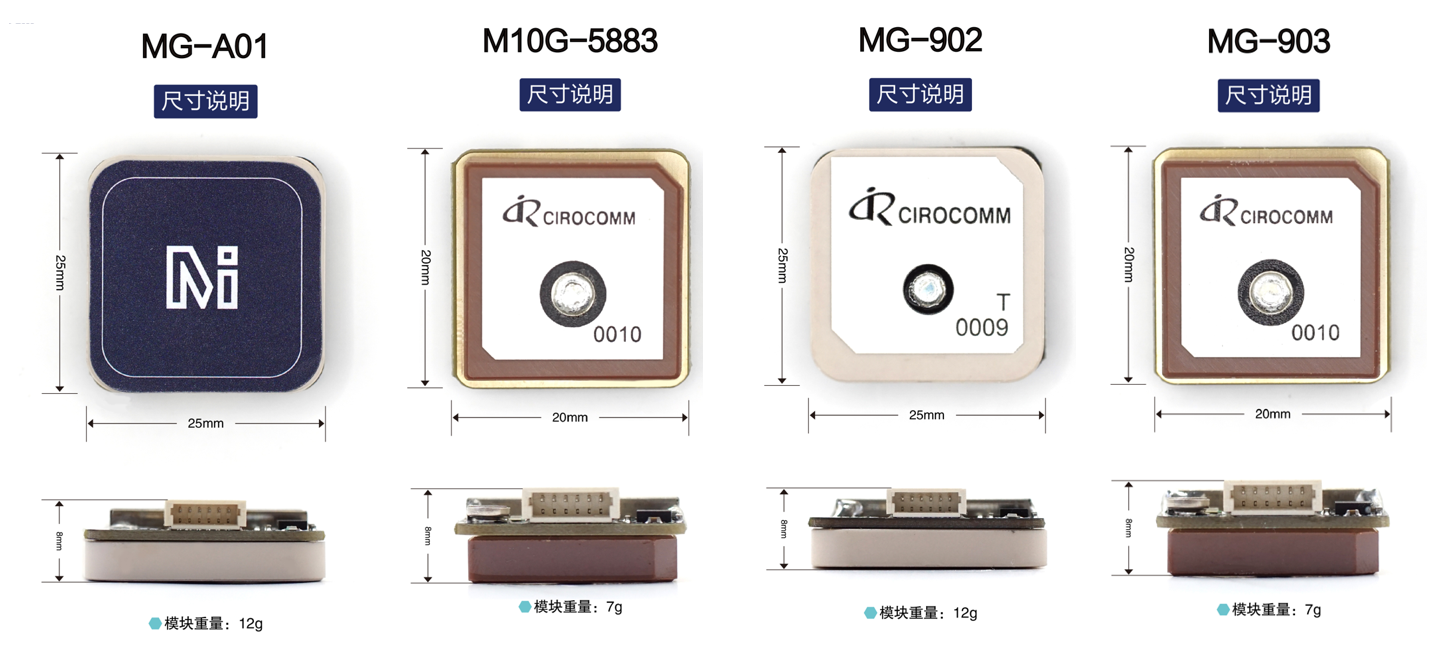

产品尺寸

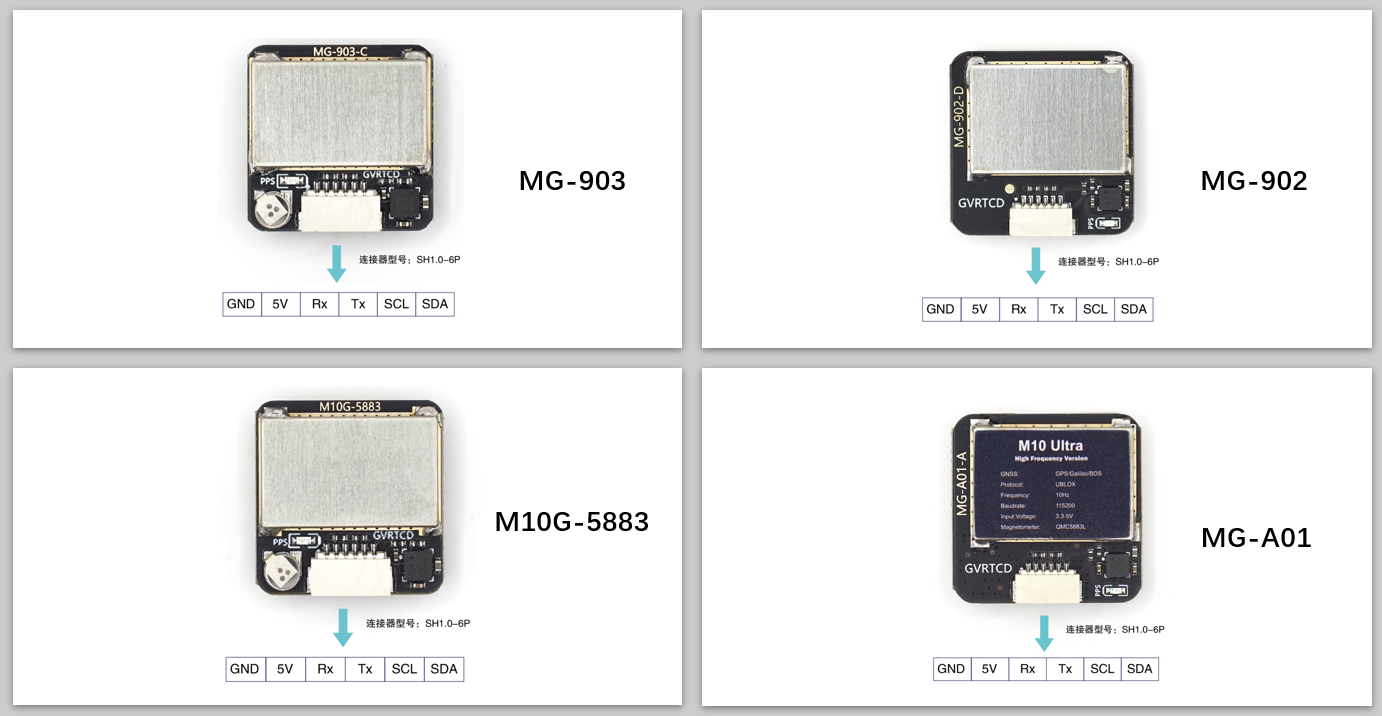

接口线序定义
- GND：接飞控电源GND
- 5V: 接飞控电源5V
- Rx：接飞控串口Tx
- Tx：接飞控串口Rx
- SCL：接飞控SCL
- SDA：接飞控SDA

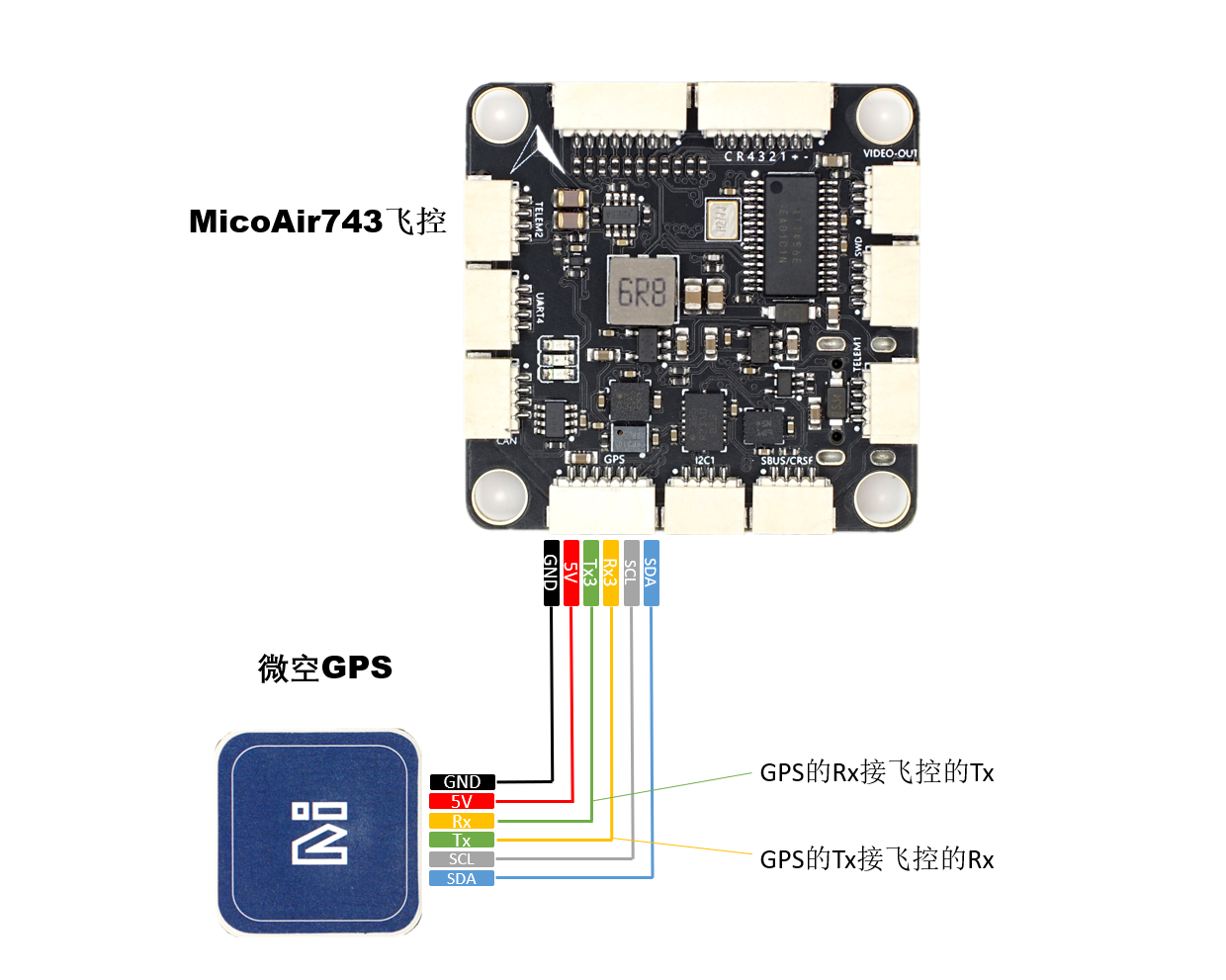

飞控接线示意图
相关资料
-
u-center下载(ublox官方测试软件)
