微空70A四合一AM32电调用户手册
产品购买
电调参数
- 电调固件：AM32_F4A_4IN1_F421_2.17
- PWM载频：48KHz
- 电调协议：PWM/DShot300/DShot600 （推荐使用DShot300）
- 电源输入支持：2-6S (5.6V-27V)
- 最大持续工作电流：70A x 4路 （需有良好散热，不能工作在密封环境下）
- MOSFET参数：40V 0.95毫欧超低内阻 金属封装
- 电流计输出：10.2mV/A
- 安装孔位：30.5x30.5mm(4mm孔径）
- 重量：14.5g
- 推荐使用场景：5-12寸FPV穿越机

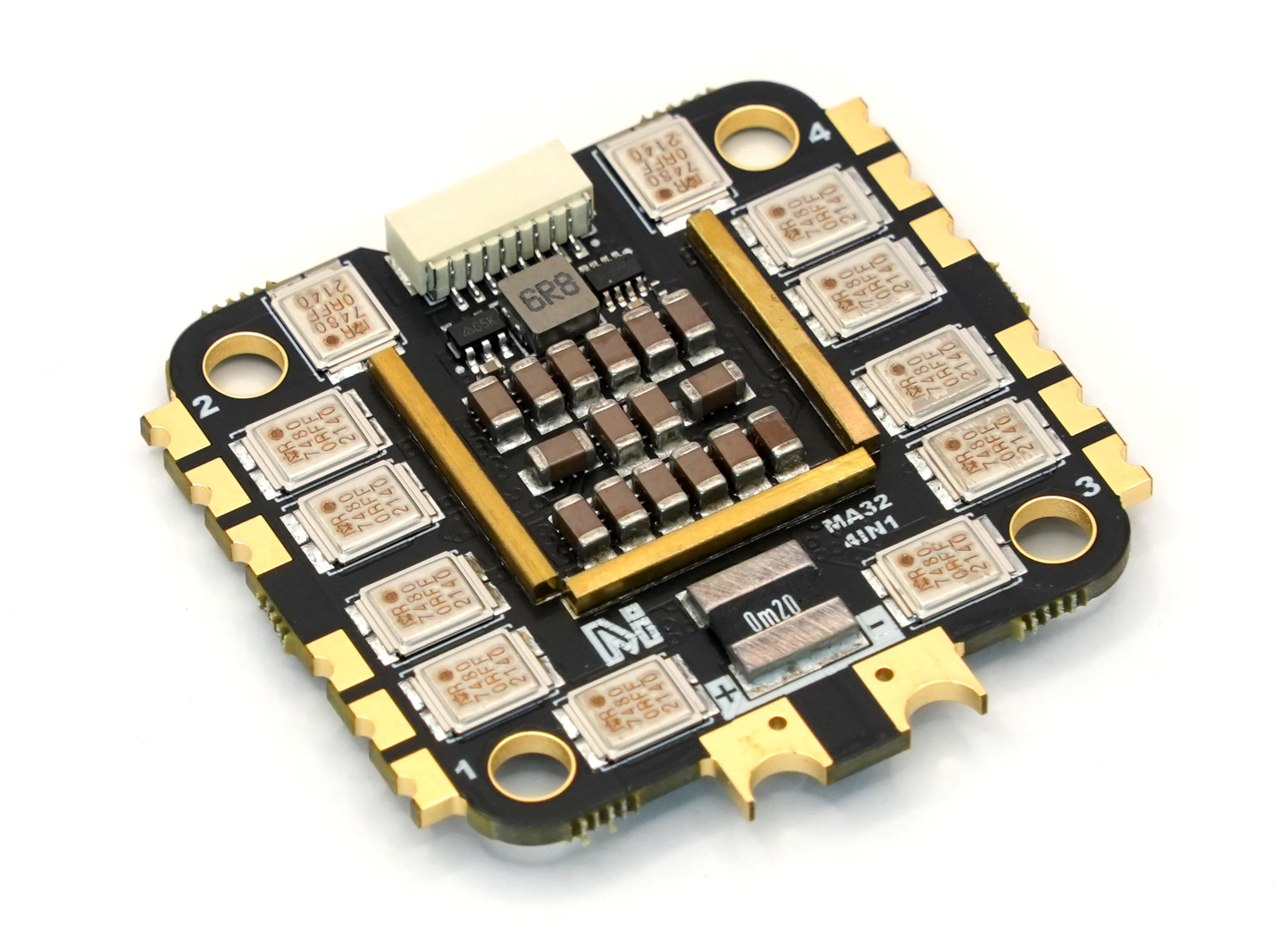

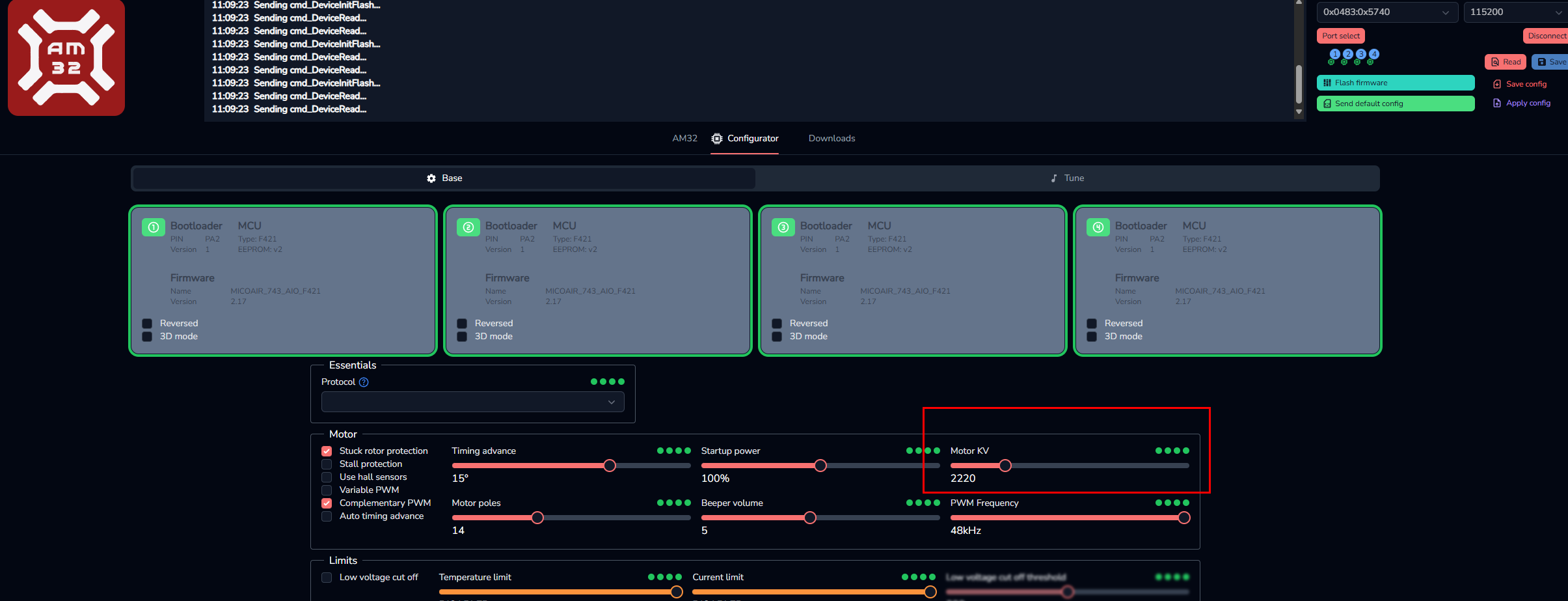

电调配置工具
https://am32.ca/configurator
推荐通过Betaflight或者INAV飞控来连接电调到配置工具。
注意事项
AM32电调固件主要适配常规穿越机电机，默认kv值参数为2220.
如果使用低KV值的大电机或者较高KV值的小电机，需要手动修改配置改项参数，否则可能电机转速无法达到预期效果。
尺寸和接口线序定义
- Curr：电流计输出接口
- NC: 无需连接
- M1-M4: 电机控制信号输入
- VBAT：电池电压输出，通常用于给飞控供电。比如电调接入6S电池，VBAT电压就是6S（22.2V）
- GND：电源地

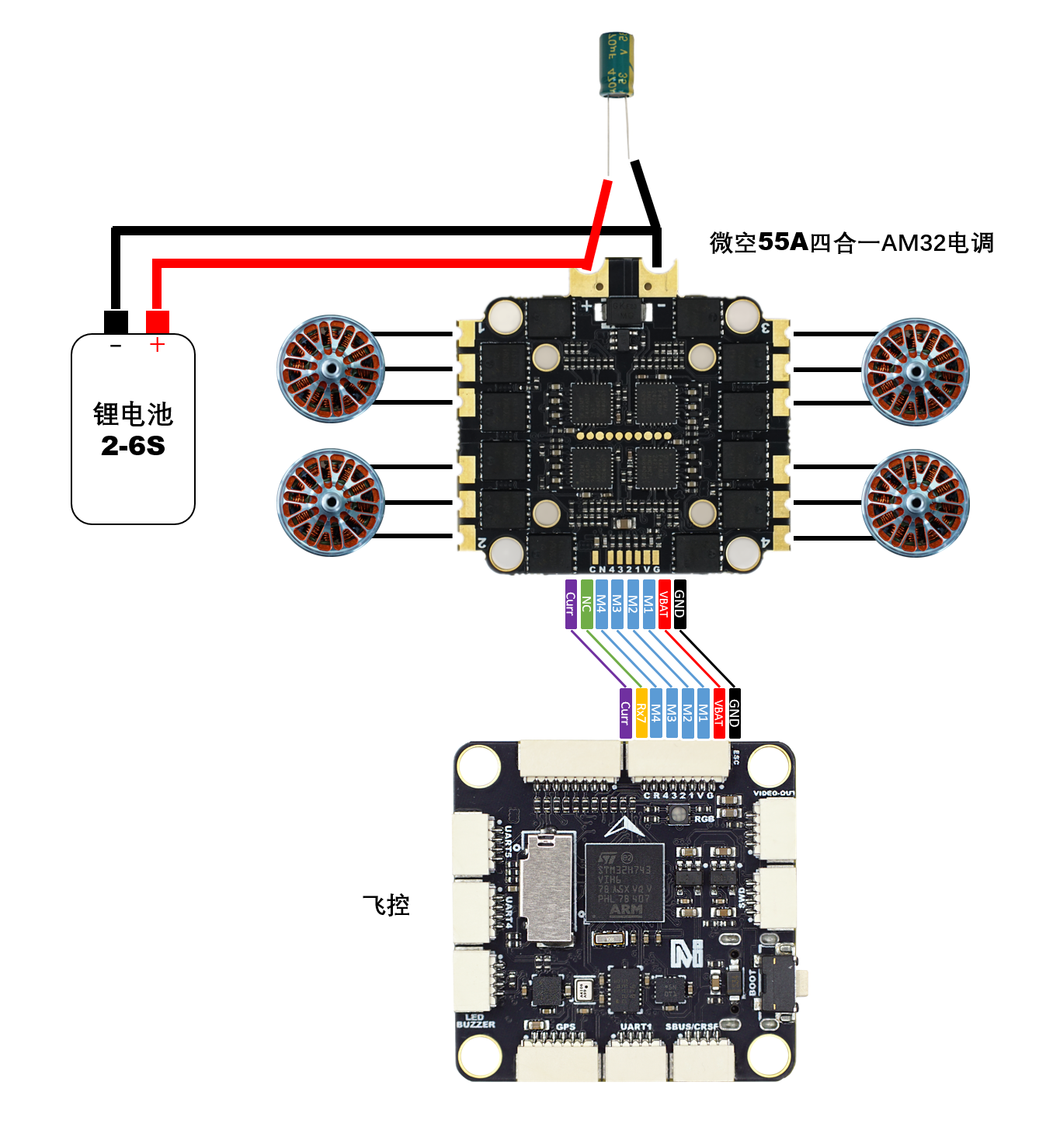

电调接线示意图
