微空MG-F10双频GNSS模组用户手册

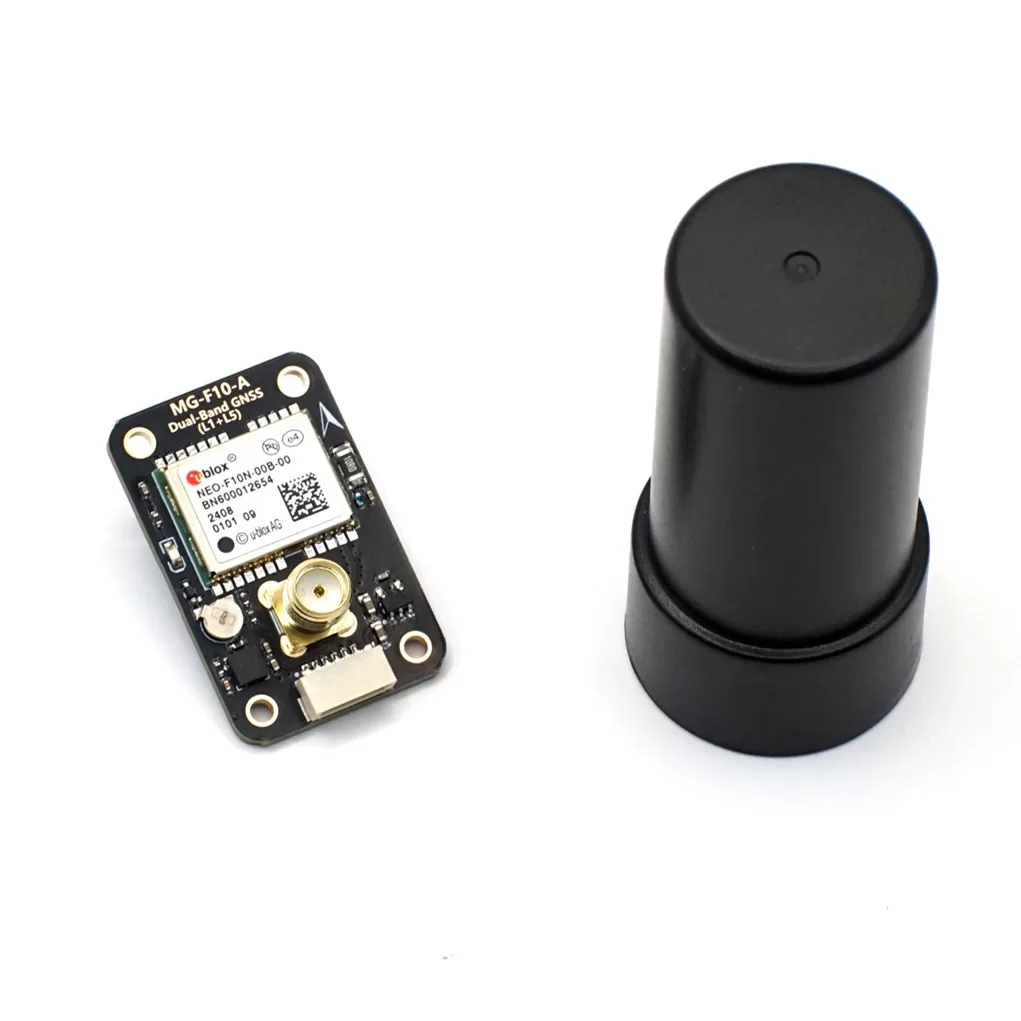

产品介绍
MG-F10是微空科技专为无人机应用开发的最新一代双频GNSS定位模组，模组采用Ublox最新一代NEO-F10N双频接收机和全频段高增益四臂螺旋天线，可以支持GPS/北斗/Galileo/NaVIC四星双频L1+L5联合定位，从而获得了当下GNSS产品中除了RTK差分定位以外的最佳定位性能，极其适合各类对定位精度、速度精度要求高的多旋翼/固定翼无人机产品使用。
产品购买

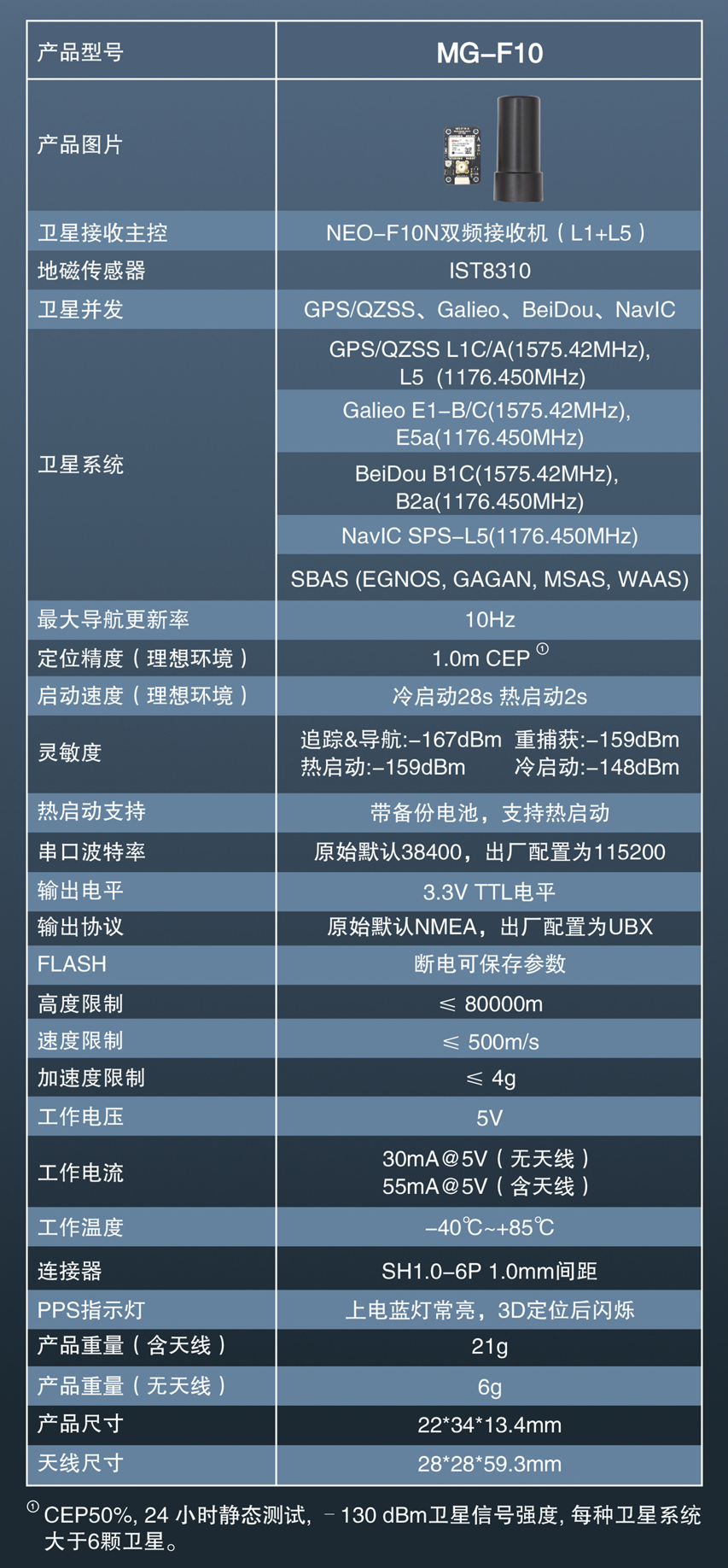

产品参数

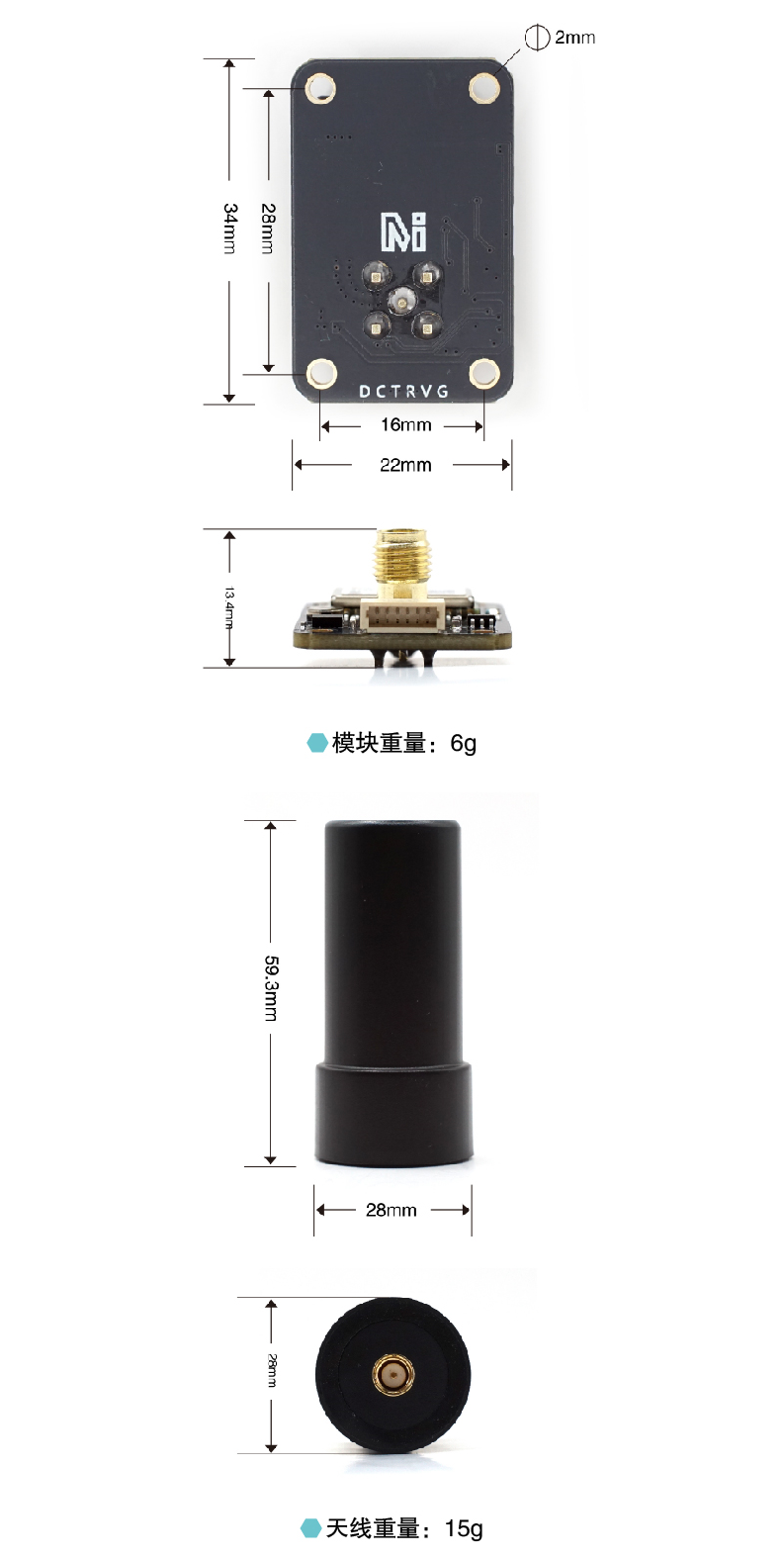

产品尺寸

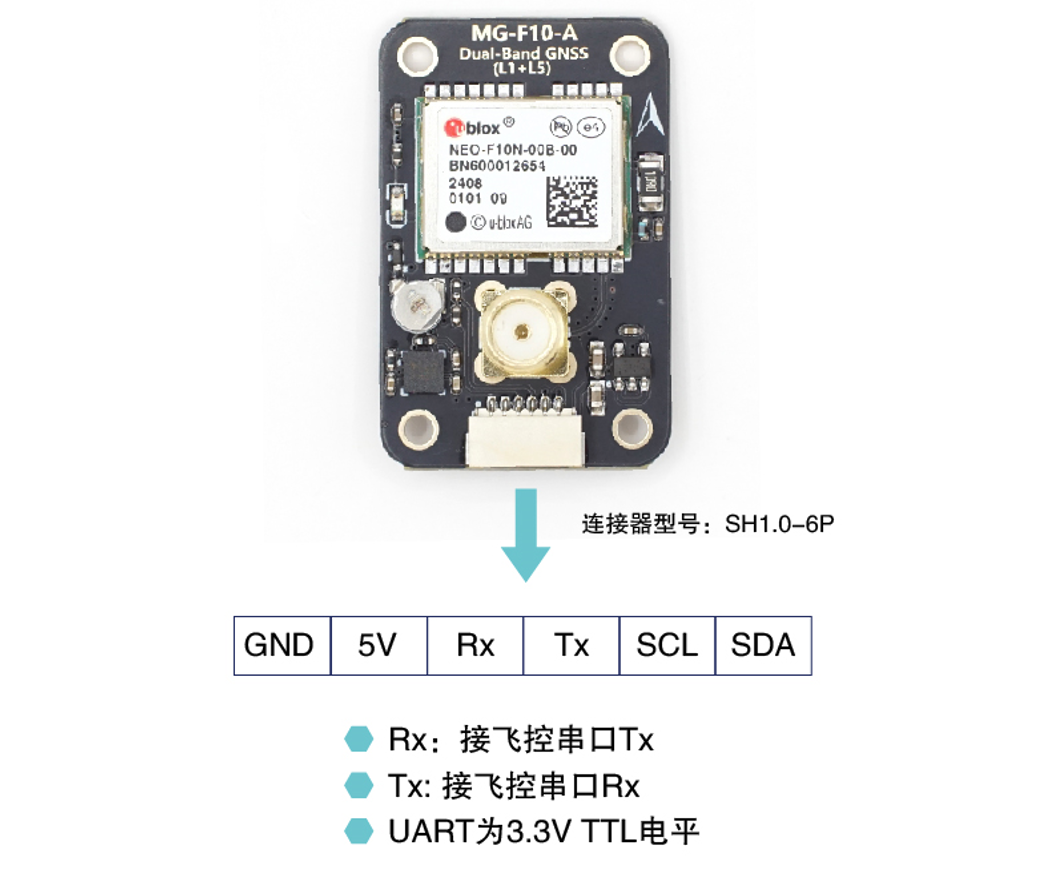

接口线序定义
- GND：接飞控电源GND
- 5V: 接飞控电源5V
- Rx：接飞控串口Tx
- Tx：接飞控串口Rx
- SCL：接飞控SCL
- SDA：接飞控SDA
产品测试
